Extended length spiral flute
Extended length spiral flute drill body.
- The "Drill insert range" matches to the "insert body series"

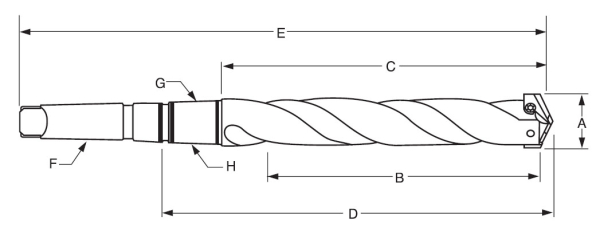

| Part No | Insert Series | Drill Insert Range "A" | Max Drill Depth "B" | Flute Lgh "C" | Ref Lgh "D" | Overall "E" | MT "F" | Pipe Tap "G" | RCA "H" | Price Per | Price | Quantity |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| EU8Y5250002M | Y | 9.5 ~ 11.0 | 111.1 | 130.9 | 167.4 | 239.7 | #2 | 1/16 | PR120190 | Each | £190.26 (ex VAT) Includes your 70% Disc | |
| EU8Z5250002M | Z | 11.5 ~ 12.5 | 111.1 | 130.9 | 167.4 | 239.7 | #2 | 1/16 | PR120190 | Each | £190.26 (ex VAT) Includes your 70% Disc | |
| EU805250002M | 0 | 13.0 ~ 17.5 | 114.3 | 135 | 171.8 | 243.7 | #2 | 1/16 | PR120190 | Each | £209.17 (ex VAT) Includes your 70% Disc | |
| EU815250002M | 0.5 | 15.5 ~ 17.5 | 114.3 | 135 | 171.8 | 243.7 | #2 | 1/16 | PR120190 | Each | £209.18 (ex VAT) Includes your 70% Disc | |
| EU825250003M | 1 | 18.0 ~ 24.0 | 273.1 | 301.6 | 345.7 | 435.8 | #3 | 1/8 | PR120254 | Each | £350.13 (ex VAT) Includes your 70% Disc | |
| EU835250003M | 1.5 | 22.0 ~ 24.0 | 273.1 | 301.6 | 345.7 | 435.8 | #3 | 1/8 | PR120254 | Each | £353.71 (ex VAT) Includes your 70% Disc | |
| EU845250004M | 2 | 25.0 ~ 35.0 | 289 | 317.5 | 363.6 | 477 | #4 | 1/8 | PR120254 | Each | £411.68 (ex VAT) Includes your 70% Disc | |
| EU855250004M | 2.5 | 30.0 ~ 35.0 | 289 | 317.5 | 370.8 | 484.2 | #4 | 1/4 | PR120317 | Each | £416.39 (ex VAT) Includes your 70% Disc |
