Extended length straight flute
Extended length straight flute drill body.
- The "Drill insert range" matches to the "insert body series"

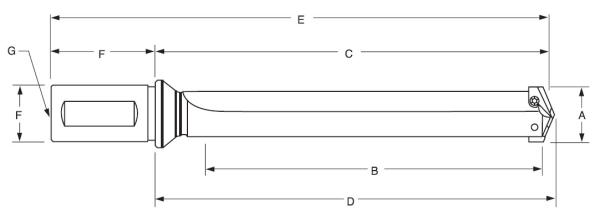

| Part No | Insert Series | Drill Insert Range "A" | Max Drill Depth "B" | Flute Lgh "C" | Ref Lgh "D" | Overall "E" | Shank Dia "F" | Shank Lgh "F" | Pipe Tap "G" | Price Per | Price | Quantity |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| EU86515040FM | 3 | 36.0 ~ 47.0 | 349.3 | 401.6 | 406.4 | 471.7 | 40 | 70.1 | 1/4 | Each | £453.28 (ex VAT) Includes your 70% Disc | |
| EU87515040FM | 4 | 48.0 ~ 65.0 | 422.3 | 471.5 | 476.3 | 541.6 | 40 | 70.1 | 1/4 | Each | £509.40 (ex VAT) Includes your 70% Disc |
